The Maidaid C61D Tray/Dishwasher offers extra washing capacity with its larger 500 x 600mm rack, making it ideal for busy commercial kitchens handling plates, trays and other larger wash loads.
It combines nine wash programmes and a fast 80-second cycle with water consumption from just 1.8 litres per cycle. A built-in drain pump, break tank, rinse booster pump and triple filtration system come as standard.
The C61D is also EN17735 certified.
Key Features
- Larger rack accommodates up to 18 plates
- Nine wash programmes for flexible operation
- Fast 80-second programme for busy service
- Low water consumption helps control running costs
- Built-in break tank and rinse booster pump
- Built-in drain pump
- Triple filtration helps reduce wear on the wash pump
- Stratified double-skin construction improves heat retention
- Quick-release wash and rinse arms for easier cleaning
- Automatic detergent and rinse-aid dosing
- Simple LED digital display
- Robust stainless steel handle
- EN17735 certified for high-level sanitisation

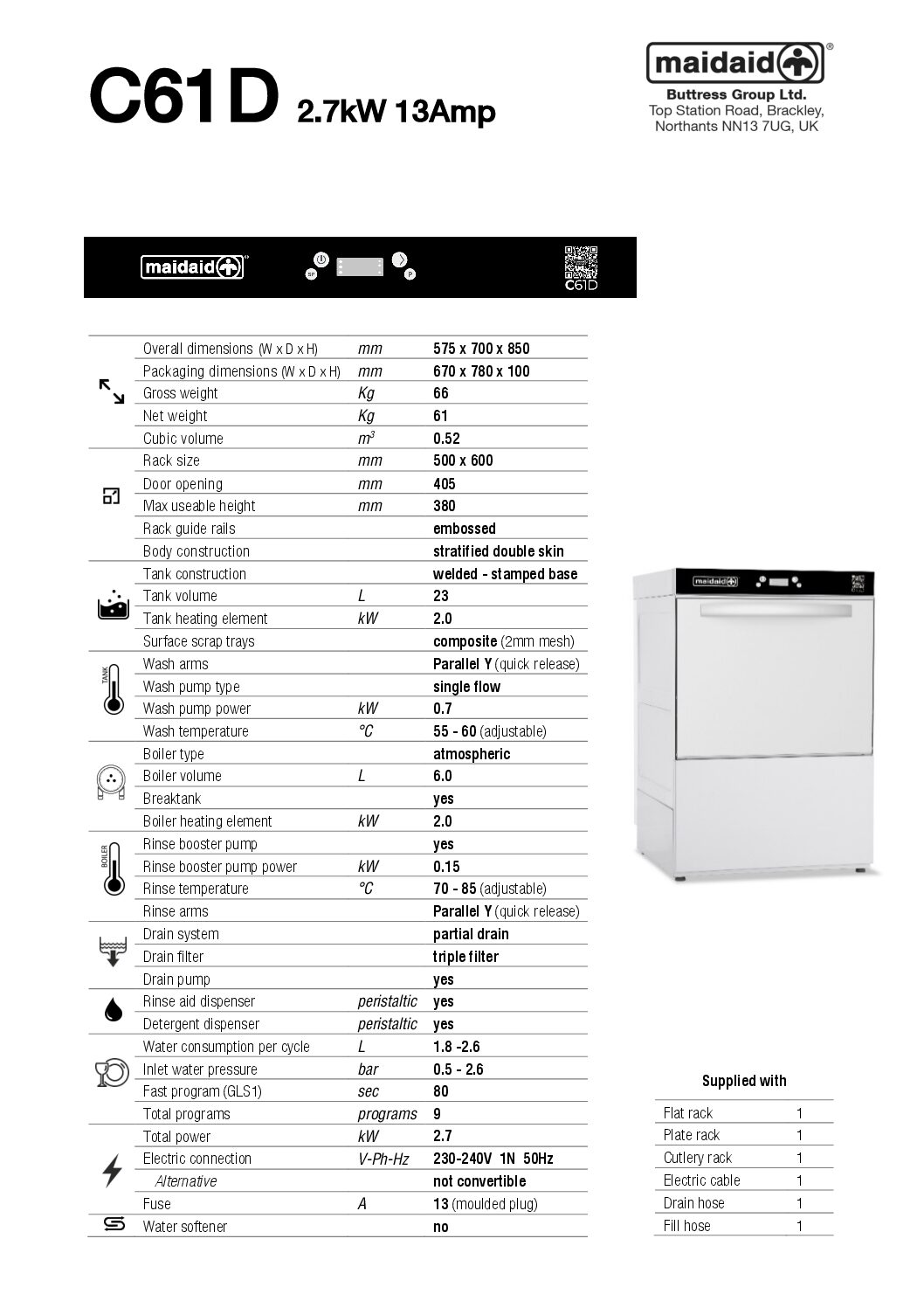

Technical Specification
- Model: C61D
- Rack Size: 500 x 600mm
- Dimensions: W575 x D700 x H850mm
- Maximum Usable Height: 380mm
- Door Opening: 405mm
- Tank Capacity: 23 litres
- Boiler Capacity: 6 litres
- Water Consumption: 1.8–2.6 litres per cycle
- Wash Temperature: 55–60°C adjustable
- Rinse Temperature: 70–85°C adjustable
- Fast Programme: 80 seconds
- Total Programmes: 9
- Wash Pump: 0.7kW
- Water Softener: No
- Net Weight: 61kg
- Gross Weight: 66kg
Electrical Options
- 2.7kW – 13A Plug

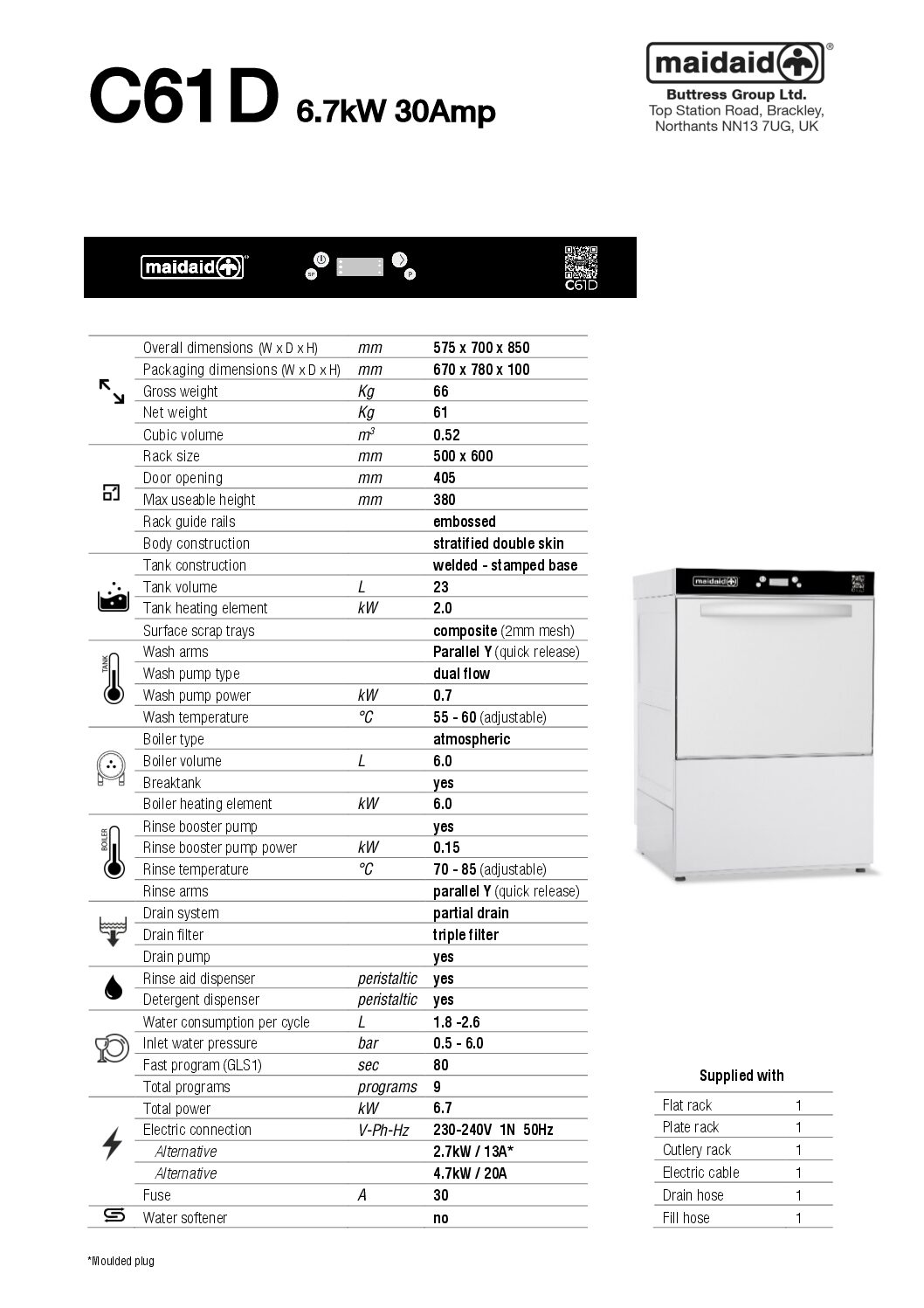

- 6.7kW – 30A Single Phase

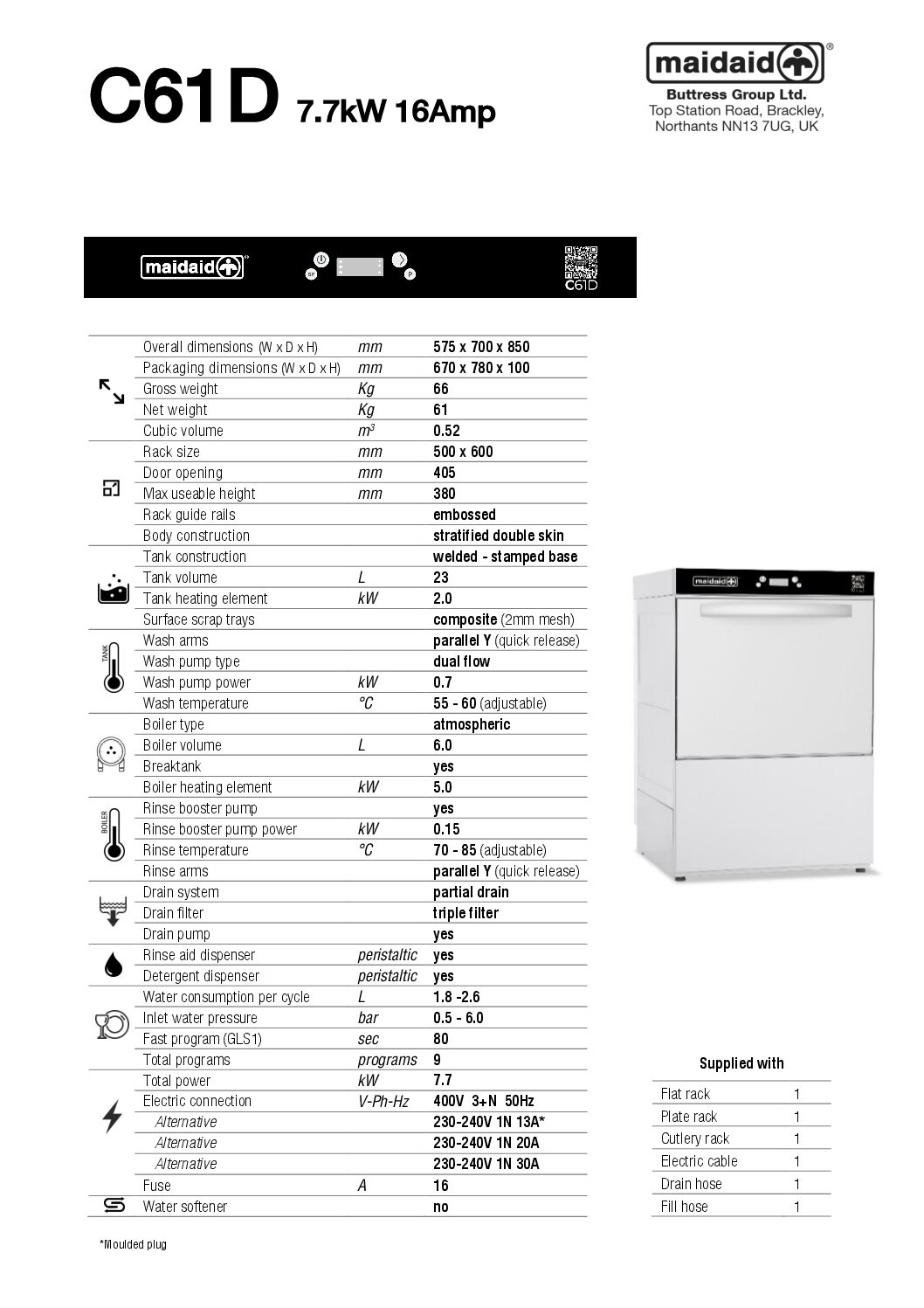

- 7.7kW – 16A Three Phase
Supplied With
- 1 x flat rack
- 1 x plate rack
- 1 x cutlery rack
- Electrical cable
- Drain hose
- Fill hose
Delivery & Warranty
Fast Free UK Mainland Delivery.
The Maidaid C61D is supplied with a 2 Year Warranty.
For Northern Ireland, Scottish Highlands, islands and other non-mainland UK destinations, please contact us for a delivery quotation.
Installation Notice
The C61D requires suitable electrical, water and drainage services. The 13A version is supplied with a moulded plug. The 6.7kW 30A single-phase and 7.7kW 16A three-phase models require hardwiring to a suitable electrical supply by a qualified electrician. The electrical supply must be appropriate for the version selected.
Installation and operation should follow the manufacturer’s instructions and specified service requirements to ensure the machine is installed and used correctly.
Water treatment: To achieve good warewashing results water treatment is essential. It will help prevent calcium scaling of internal components and reduce detergent consumption. If water hardness exceeds 7° Clark (100 ppm), a water softener is recommended on all dish and glass washers, unless already built into the machine.
