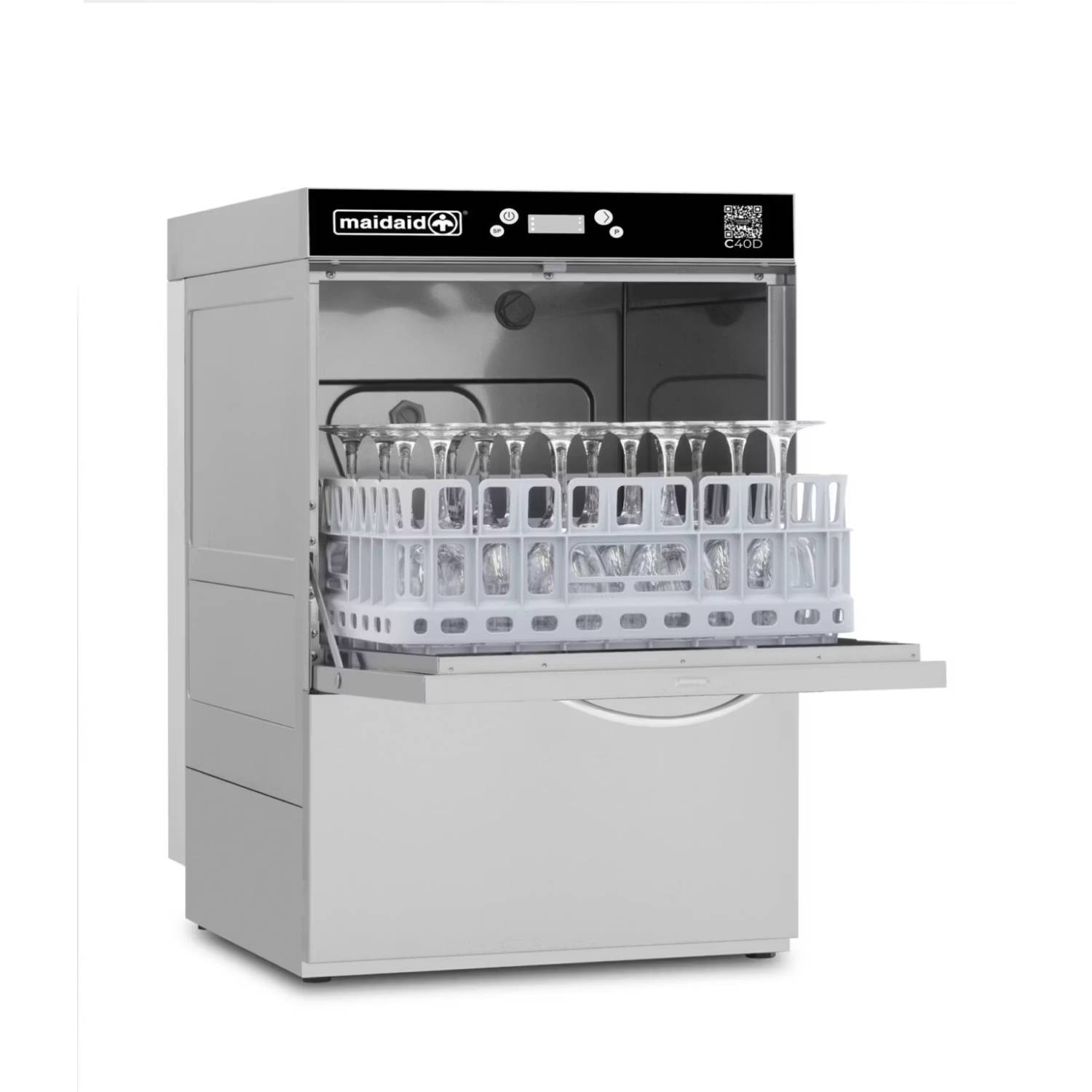

The Maidaid C40D combines powerful wash performance with low running costs, making it an excellent choice for hospitality businesses serving large volumes of glassware throughout the day.
Its 390 x 390mm basket and generous 295mm loading height easily accommodate pint glasses, wine glasses, tumblers and coffee cups, all within a compact undercounter footprint.
The C Range’s LED control panel, with its scratch-resistant finish, lets operators select from six wash programmes quickly to suit different glassware and service demands.
A stratified double-skinned cabinet improves insulation and heat retention, helping reduce both energy consumption and operating noise. Combined with water consumption from just 2 litres per cycle, the C40D delivers impressive efficiency without compromising wash quality.
Accurate peristaltic detergent and rinse aid dosing pumps keep cleaning results consistent while reducing chemical waste. A dual-flow wash pump drives strong wash performance, while the triple filtration system protects the pump from debris, extending machine life and cutting maintenance.
Quick-release wash and rinse arms with inspection caps make routine cleaning simple, helping the machine hold peak performance throughout service.
Certified to EN17735, the Maidaid C40D delivers the highest recognised commercial warewashing sanitisation standard and is supplied complete with two glass racks, a saucer rack and cutlery rack, ready to put straight to work.
Key Features
- Compact commercial glasswasher ideal for pubs, cafés, bars and restaurants
- 390 x 390mm basket
- Integral drain pump for flexible installation
- Uses from just 1.5 litres of water per cycle
- Stratified double-skinned cabinet improves heat retention and energy efficiency
- LED touchscreen controls with scratch-resistant display
- Six wash programmes
- Pressurised boiler helps maintain consistent rinse performance
- Dual-flow wash pump delivers powerful cleaning performance
- Accurate detergent and rinse aid peristaltic dosing pumps
- Triple filtration system helps protect the wash pump
- Quick-release wash and rinse arms for easy cleaning
- EN17735 certified commercial sanitisation
- Supplied with two flat racks and cutlery basket
- 2 Year Manufacturer’s Warranty

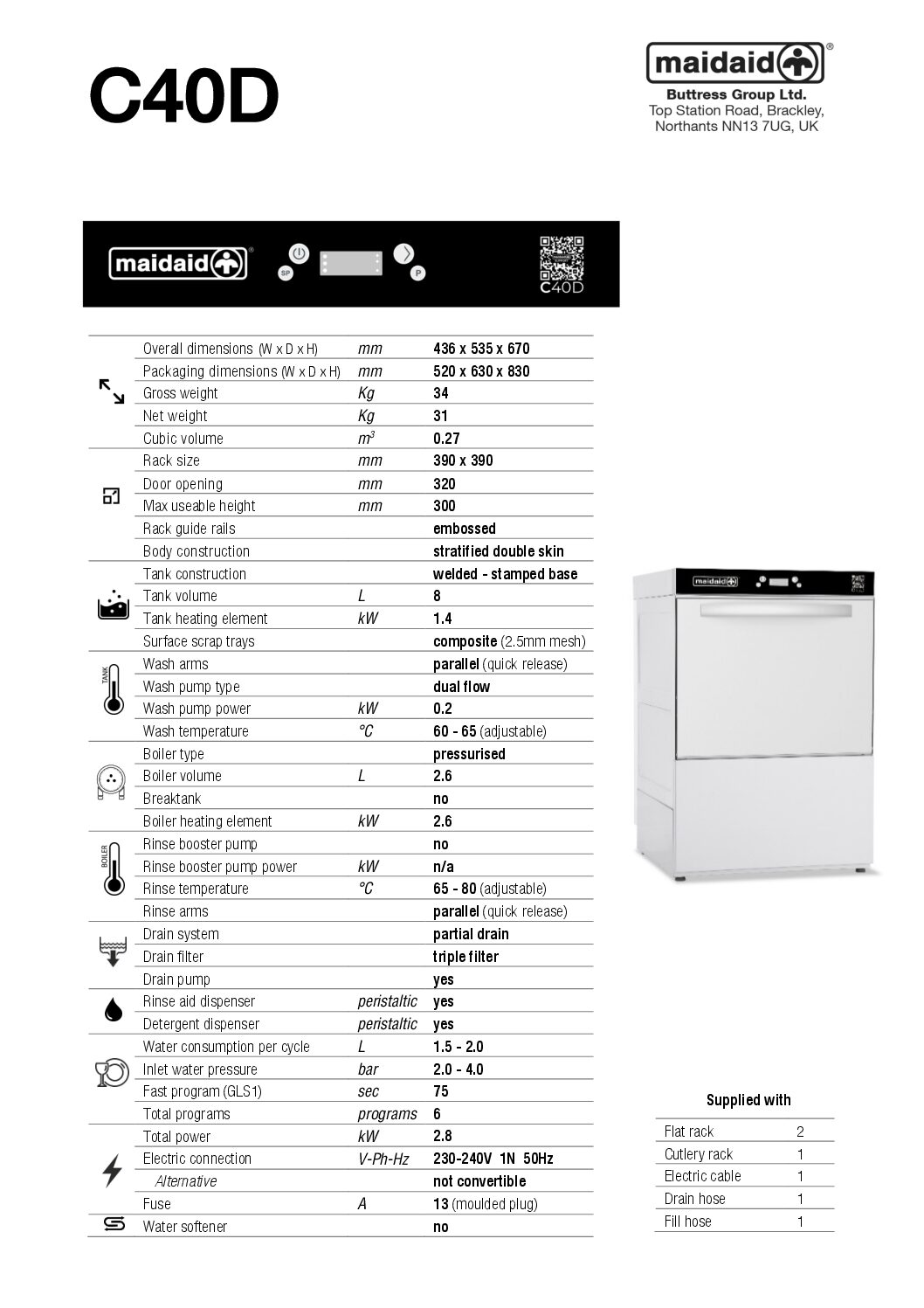

Technical Specification
- Model: C40D
- Basket Size: 390 x 390mm
- Overall Dimensions (W x D x H): 436 x 535 x 670mm
- Maximum Loading Height: 300mm
- Door Opening: 320mm
- Tank Capacity: 8 Litres
- Boiler Type: Pressurised
- Boiler Capacity: 2.6 Litres
- Tank Heating Element: 1.4kW
- Boiler Heating Element: 2.6kW
- Water Consumption: 1.5-2.0 Litres per cycle
- Wash Programmes: 6
- Wash Temperature: Adjustable 60-65°C
- Rinse Temperature: Adjustable 65-80°C
- Wash Pump: Dual Flow
- Drain Pump: Yes
- Break Tank: No
- Rinse Booster Pump: No
- Triple Filtration System
- Detergent Pump: Integral Peristaltic
- Rinse Aid Pump: Integral Peristaltic
- Water Softener: No
- Water Pressure: 2.0-4.0 Bar
- Electrical Supply: 230-240V / 1 Phase / 50Hz
- Power: 2.8kW
- Plug: 13 Amp (Moulded Plug)
- Net Weight: 31kg
Delivery & Warranty
Free UK Mainland Delivery is included with this Maidaid glasswasher.
Delivery to the Scottish Highlands, Islands, Northern Ireland and other offshore locations is available—please contact us for a quotation.
The Maidaid C40D is supplied complete with a 2 Year Manufacturer’s Warranty for added peace of mind.
For delivery information, installation advice or stock availability, call 01379 641223.
Installation Notice
This appliance must be installed by a suitably qualified engineer and connected in accordance with the manufacturer’s instructions and all current electrical and water regulations. The C40D is supplied with a 13 Amp moulded plug for straightforward installation into a suitable socket.
Frequently Asked Questions
Is the Maidaid C40D suitable for busy bars and cafés?
Yes. The larger 390 × 390mm basket, generous loading height and six wash programmes make the C40D an excellent choice for busy pubs, cafés, bars and restaurants requiring fast, reliable glasswashing.
Does the C40D include a drain pump?
Yes. The machine is supplied with an integral drain pump, allowing installation where gravity drainage is not available.
Does the machine include detergent and rinse aid dosing?
Yes. Both detergent and rinse aid peristaltic dosing pumps are fitted as standard to ensure consistent wash performance whilst helping reduce chemical consumption.
What accessories are supplied?
The C40D is supplied complete with two flat racks, one cutlery basket, an electric cable, fill hose and drain hose.
Does the C40D have a built-in water softener?
No. The C40D does not include an integral water softener. If your premises are located in a hard water area, we recommend installing suitable water treatment to help protect the machine and maintain optimum washing performance.
