The Maidaid C40WSD Undercounter Glasswasher is a compact 390mm machine designed for busy bars, pubs, cafés and restaurants.
With low water consumption, six wash programmes and a fast 75-second cycle, it combines efficient glasswashing with simple operation. A built-in drain pump and 4-column water softener come as standard, while triple filtration and quick-release wash and rinse arms make everyday cleaning and maintenance easier.
Compact, efficient and supplied with a 13A plug, the C40WSD is a practical choice where space and running costs matter.
Key Features
- Low water consumption helps reduce day-to-day running costs
- Built-in drain pump for easier installation
- Integrated 4-column water softener
- Six wash programmes for different service requirements
- Fast 75-second programme for busy periods
- Simple LED digital controls
- Stratified double-skin construction improves heat retention
- Triple filtration helps protect the wash pump
- Quick-release wash and rinse arms make routine cleaning easier
- Automatic detergent and rinse-aid dosing
- Compact design suited to bars, cafés, pubs and restaurants
- Supplied ready for service with two glass racks and a cutlery insert

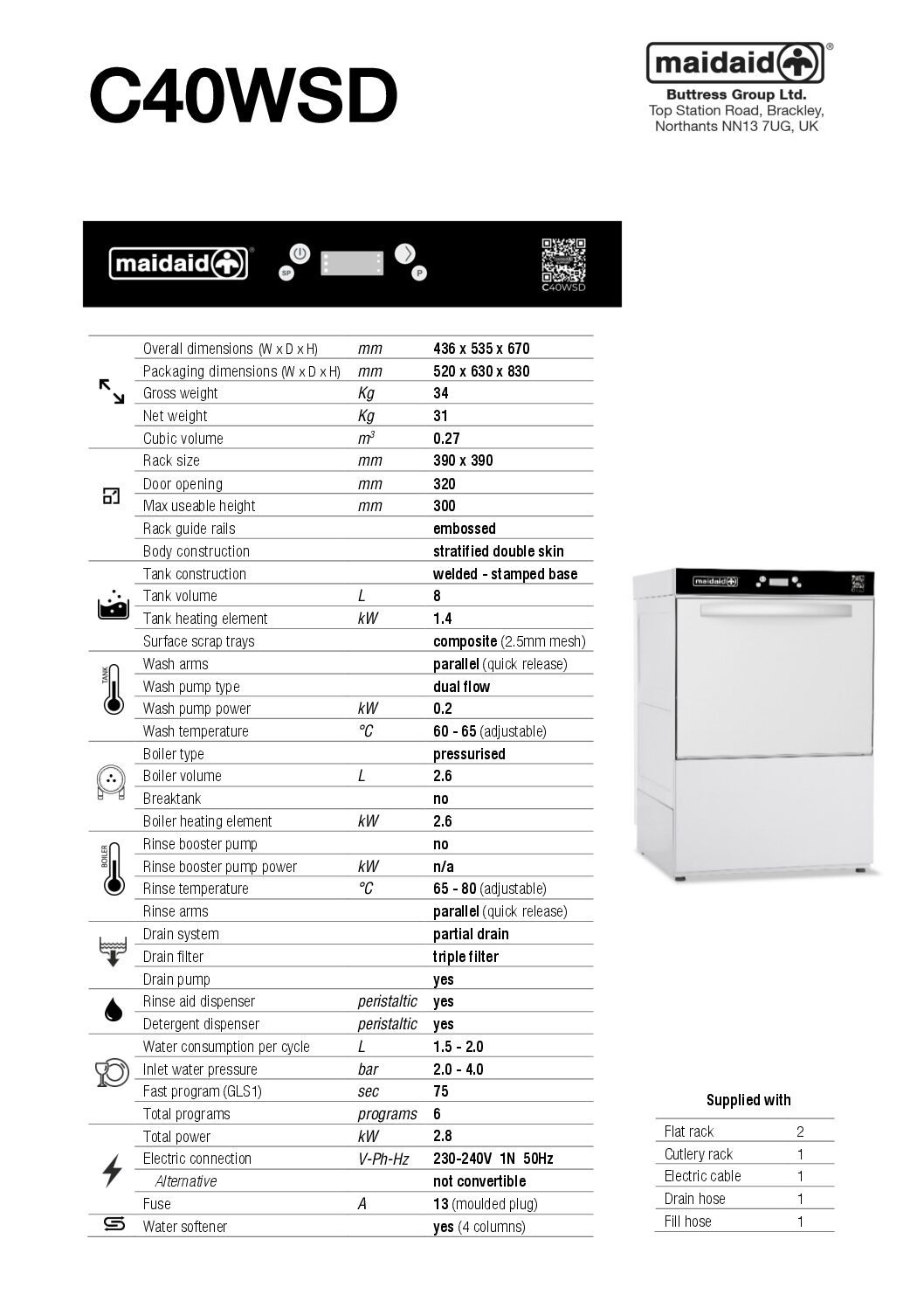

Technical Specification
- Model: C40WSD
- Rack Size: 390 x 390mm
- Dimensions: W436 x D535 x H670mm
- Maximum Usable Height: 300mm
- Tank Capacity: 8 litres
- Boiler Capacity: 2.6 litres
- Water Consumption: 1.5–2.0 litres per cycle
- Wash Temperature: 60–65°C adjustable
- Rinse Temperature: 65–80°C adjustable
- Inlet Water Pressure: 2–4 bar
- Wash Pump: 0.2kW dual flow
- Total Power: 2.8kW
- Electrical Supply: 230–240V, single phase
- Connection: 13A moulded plug
- Net Weight: 31kg
- Gross Weight: 34kg
Delivery & Warranty
Fast Free UK Mainland Delivery.
The Maidaid C40WSD is supplied with a 2 Year Warranty.
For Northern Ireland, Scottish Highlands, islands and other non-mainland UK destinations, please contact us for a delivery quotation.
Installation Notice
The C40WSD is supplied with a 13A moulded plug and requires suitable water and drainage connections. Maidaid specifies that all services should be located within 1 metre of the machine.
Always install and operate the unit in accordance with the manufacturer’s installation instructions and service requirements to ensure safe operation and avoid invalidating the warranty.
