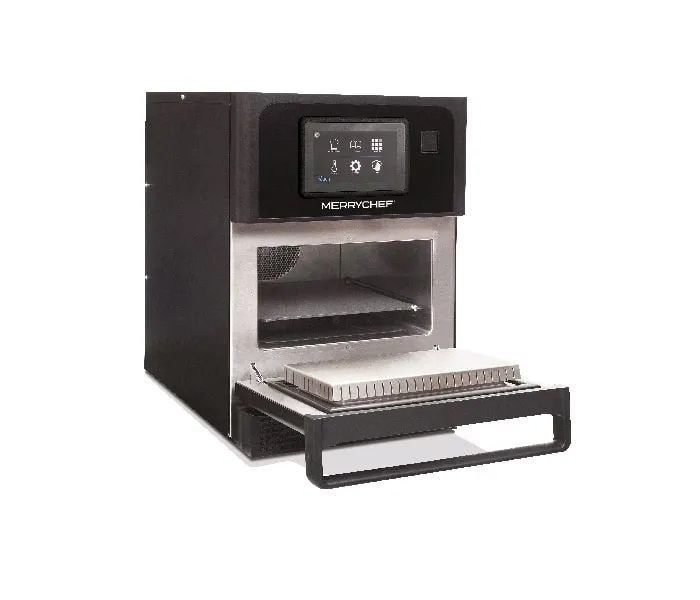

Fast, compact and easy to install, the Merrychef conneX® 12e brings high-speed cooking to sites where space and electrical capacity are at a premium. Operating from a standard 13amp plug, this versatile countertop oven combines microwave, convection and tuned impingement technology to cook, toast, grill and reheat from one compact unit.
Designed as the entry model to the conneX® range, the 12e can cook up to 70% faster than conventional cooking methods and features a generous 12″ x 12″ cooking capacity/cavity while fitting comfortably on a 600mm worktop. Ventless operation, an intuitive 7″ HD touchscreen and KitchenConnect connectivity make it an excellent choice for cafés, pubs, convenience stores, hotels and other sites wanting to introduce a fast hot-food offer without the electrical requirements of a higher-powered oven
Key Features
- Standard 13amp UK plug – straightforward installation without a 32amp supply
- Single phase, 200–230V, 50Hz
- Combines microwave, convection and tuned impingement technology
- Cooking up to 70% faster than other cooking methods
- 12″ × 12″ cooking capacity/cavity
- Compact design suitable for a 600mm worktop
- Ventless operation with built-in catalytic filtration – no extraction fan required
- 7″ HD widescreen easyTouch® 2.0 touchscreen controller
- Unlimited storage for multi-stage cooking profiles
- Up to six programmable stages per cooking profile
- Wi-Fi and Ethernet connectivity with KitchenConnect cloud access
- Menu updates via KitchenConnect or USB
- Cool-to-touch exterior suitable for front-of-house positioning
- Easy-access front-mounted monitored air filter
- Matt Black finish
- Supplied with flat cook plate, guarded hand paddle, full-size cooking tray and cook plate liner
Technical Specifications
- Model: Merrychef conneX® 12e
- Model Number: 12eGHMV5XAL1BKUK
- Finish: Matt Black
- Electrical Supply: 200–230V, 50Hz
- Phase: Single Phase
- Connection: UK BS1363 13A plug
- Maximum Power Input: 2990W
- Microwave Output: 800W
- Convected Heat: 2200W
- Temperature Range: 100°C to 260°C
- External Dimensions: 407mm (W) x 538mm (D) x 588mm (H)
- Net Weight: 47kg
- Mains Cable Length: 1.8m
- Clearance: No side clearance required; 2″ (approx. 51mm) clearance required above
- Installation: Not intended for built-in installation
Delivery & Warranty
Fast, Free UK mainland delivery included (3–4 working days).
2 year parts and labour warranty.
Why Choose the conneX® 12e?
The conneX® 12e is a great choice when you want the benefits of Merrychef high-speed cooking without needing a dedicated 32amp electrical supply. Its standard 13amp UK plug makes installation straightforward, while its compact footprint and ventless design make it particularly well suited to locations where space and infrastructure are limited.
With the ability to cook, toast, grill and reheat from a single appliance, it’s ideal for cafés, coffee shops, pubs, hotels, convenience stores and smaller foodservice operations looking to serve hot food quickly and consistently.
For businesses requiring greater throughput and cooking power, the conneX® 12 High Power or conneX® 16 would be the natural step up.
Watch It in Action
Want to see how the Merrychef accessories work in real kitchen environments? From high-opening panini presses to cool-touch trays, this quick demo shows how these clever tools maximise performance and versatility.
Installation Notice
All electrical appliances MUST be installed by a qualified electrician. Incorrect compliance with current installation legislation will lead to invalidation of warranty.

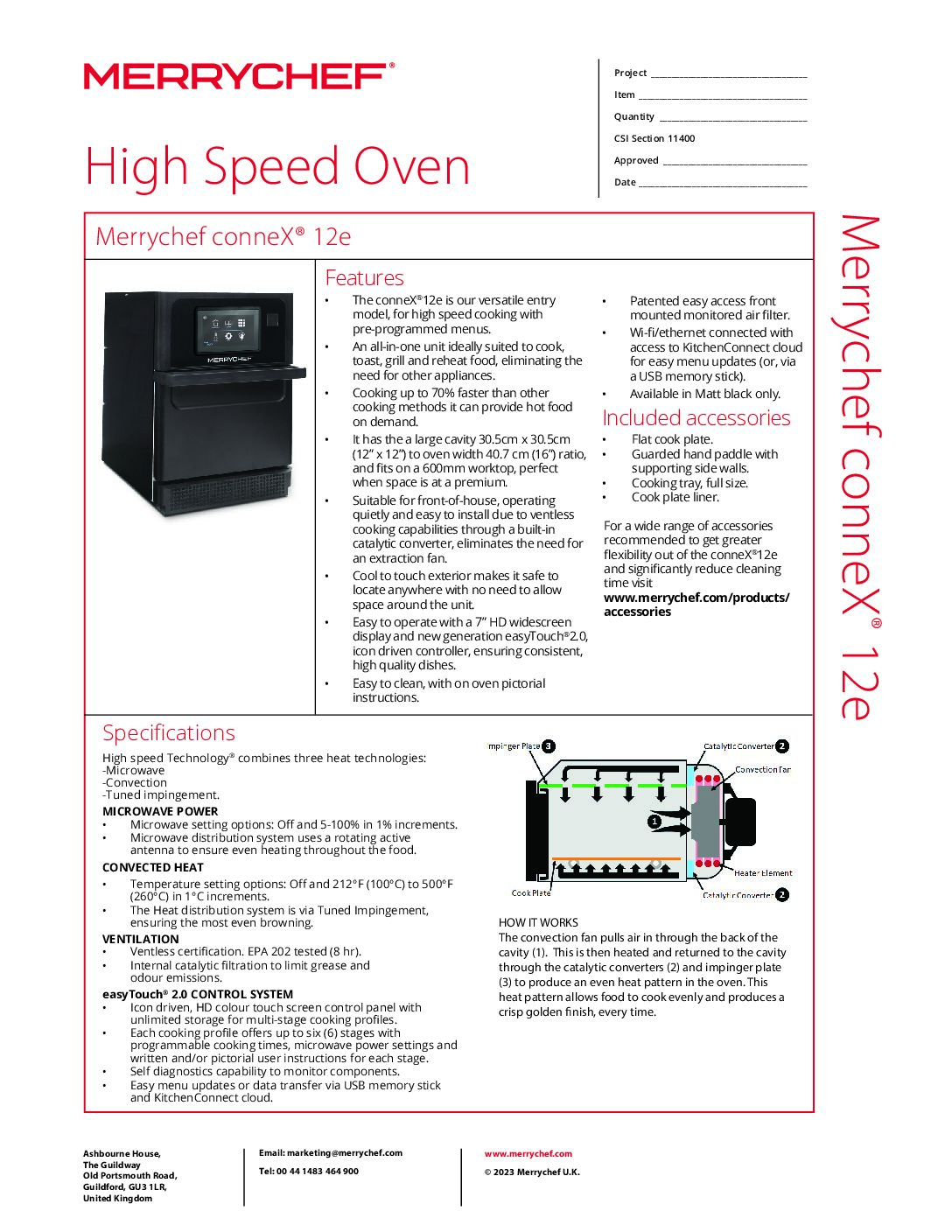

Full details of specifications, options, features, and included accessories can be found on the manufacturer’s spec sheet.
