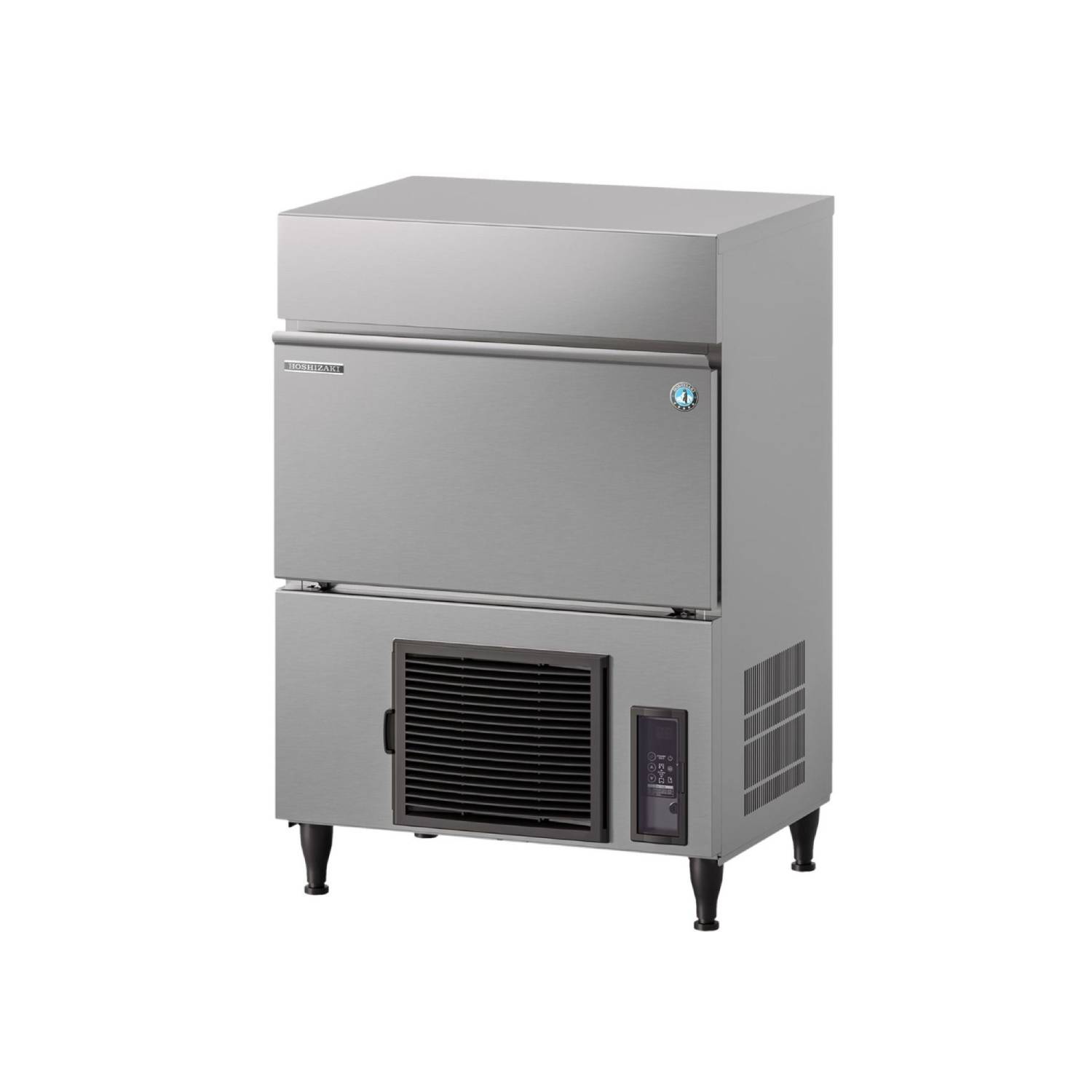

The Hoshizaki IM-65PE is the new standard IM CUBE variant of a Cuber, Self Contained producing up to 58 kg of the world-famous Hoshizaki ice cubes (Large cubes, Standard) per 24 hours. The dimensions of this model are mm without legs. The IM CUBE models come with smart product improvements (compared to the previous IM range), such as automated cleaning (wash auto-restart), water circuit cleaning notification, condenser cleaning notification, scoop holder kit (optional), higher-grade stainless steel, magnetic DC Pump Motor with variable speed, and stand-by/wash buttons.
Key Features
- Ice making system with an automatic rinse cycle
- Each ice cycle is made with fresh water
- Closed Cell System helps produce compact, hard and geometrically perfect ice
- Closed water circuit for contamination protection
- Easy external access to control panel
- UV-C sanitization function is retrofittable
- Internal drain pump is retrofittable
- System comes with a magnetic DC water pump with variable speed that has no direct coupling, which prevents any leakage
- Cleanable air filter
- Removable door gasket
- Easily removable water pan assembly
ACCESSORIES INCLUDED
Installation kit, Legs, Scoop
OPTIONAL EXTRAS
4HC-H water filtration, scoop holder kit, UV-C sanitization kit, internal drain
pump (Pump motor kit and bracket)
CORRESPONDING WATER FILTERS
4HC-H Single Water Filter, 4HC Replacement Cartridge
Technical Specifications & Dimensions
Product features
- Capacity:26kg
- Dimensions:840(H) x 633(W) x 506(D)mm
- Material:Stainless Steel
- Output:Up to 63kg per 24 hours (Hoshizaki Large Cubes: 32 x 28 x 28mm)
- Power Type:400W, 2.9A, 220-240V 50Hz, 1N~”
- Refrigerant:R290 / GWP 3
- Model Number:IM-65PE
- Voltage:220-240V
- Warranty:2 Years On-Site Parts & Labour
- Weight:50kg
- Colour:Silver

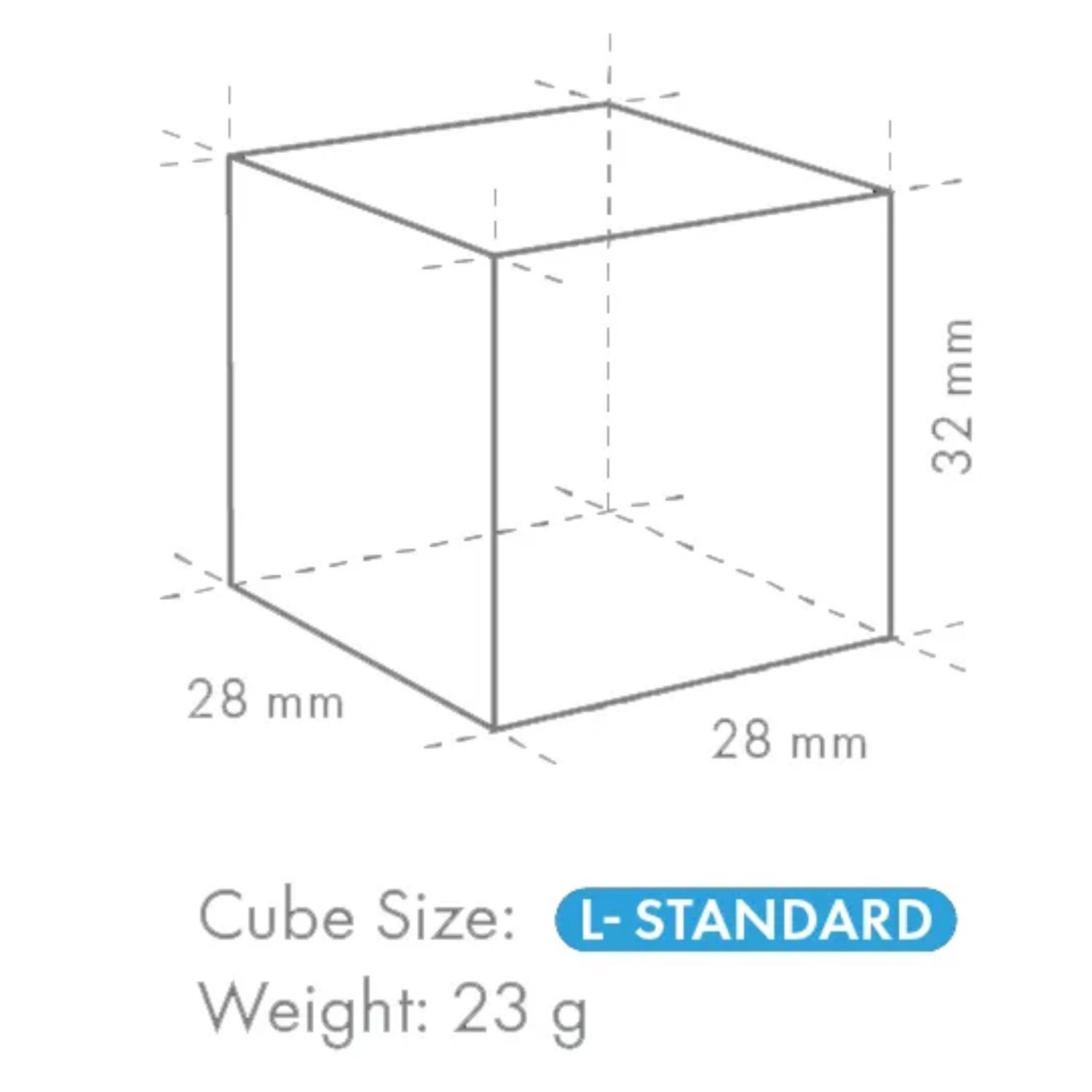

- Creates large ice cubes – 28x28x32mm
- Foam injected polyurethane insulation for excellent ice preservation, reducing production cycles and reducing running costs
- Easy to clean air filter allows users to carry out routine cleaning for extended longevity and reduced maintenance call-outs
- Automatic rinse and flush cycle
- Legs add 90-125mm of height
- Innovative closed spray ice system ensures high ice quality
- Packed dimensions: 1035(H) x 740(W) x 620(D)mm
- Removable door gasket prevents any heat and contaminants from entering the bin whilst making it easy to clean
- Each cycle is made with fresh water, ensuring exceptional ice quality – protects integrity and flavour of drinks
- Modern and easy to use control panel
- High performance air-cooled, fin and tube type condenser
Delivery & Warranty
Fast Free UK Mainland Delivery included. For Northern Ireland, Scottish Highlands and Islands, a delivery charge will apply based on order weight – please contact us for a quote.
This Hoshizaki IM-21CPE ice maker is supplied with a 3-year parts & labour warranty as standard, subject to correct installation and ongoing maintenance in line with the manufacturer’s instructions.
Please note: this product cannot be returned under the 30-day unwanted returns offer. This is due to the high testing cost after return and the potential risk of transit damage once the unit has been used.
Additional Services
Installation of your new unit and removal of the old one can be arranged for an additional charge. Please contact us for a quotation before checkout if you would like this service.
Need Assistance?
Not sure if this is the right ice maker for your site, or need advice on water filtration and drainage? Call us on 01379 641223 – we’ll confirm suitability, lead times and any installation requirements before you buy.
Installation Notice
Electrical appliances MUST be installed by a qualified electrician, in accordance with current wiring regulations and local by-laws. Incorrect installation will invalidate the manufacturer’s warranty and may pose safety risks. Water and waste connections should also be installed by a competent person. Please refer to the manufacturer’s specification sheet for full electrical, plumbing and ventilation requirements. A downloadable spec sheet is available on this product page.
