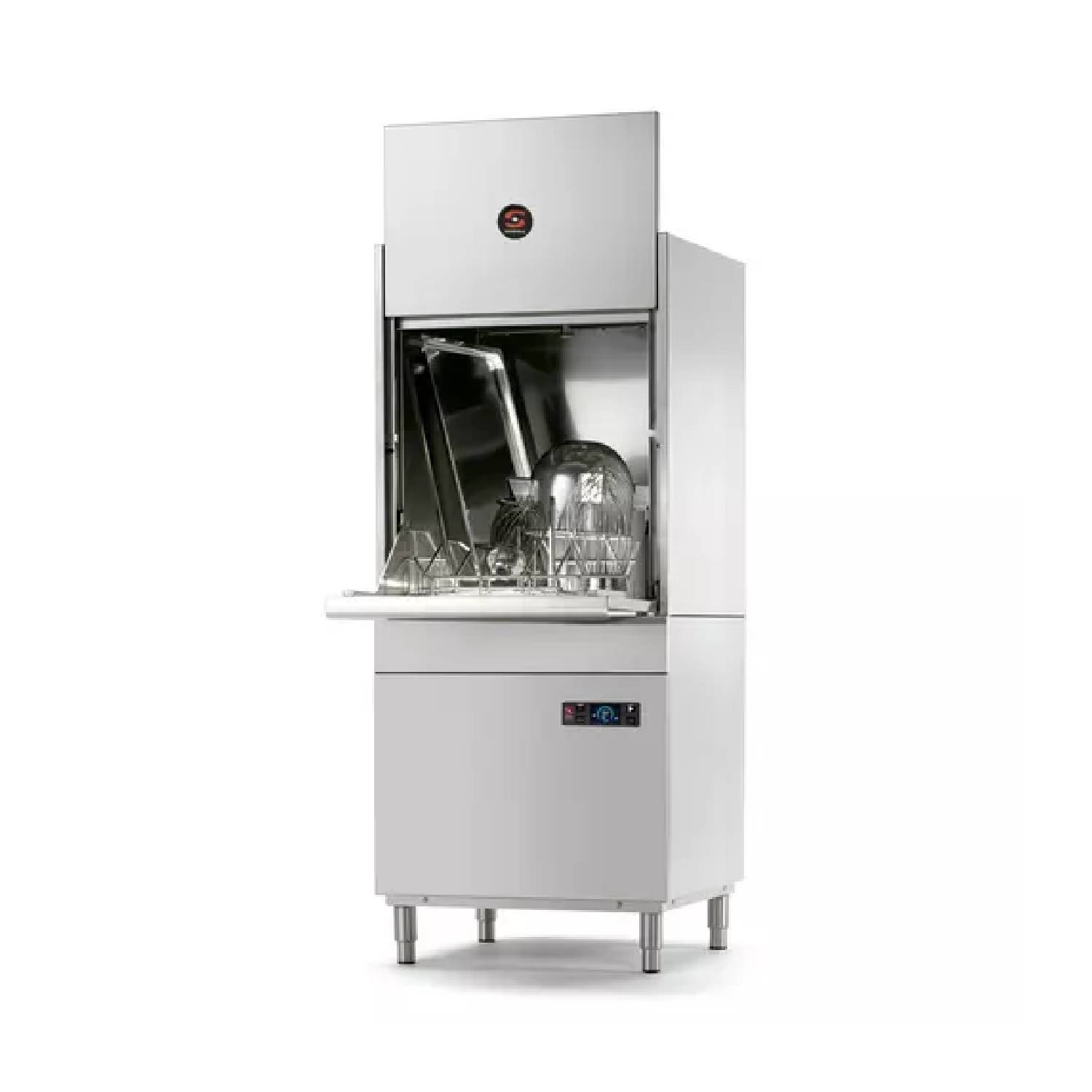

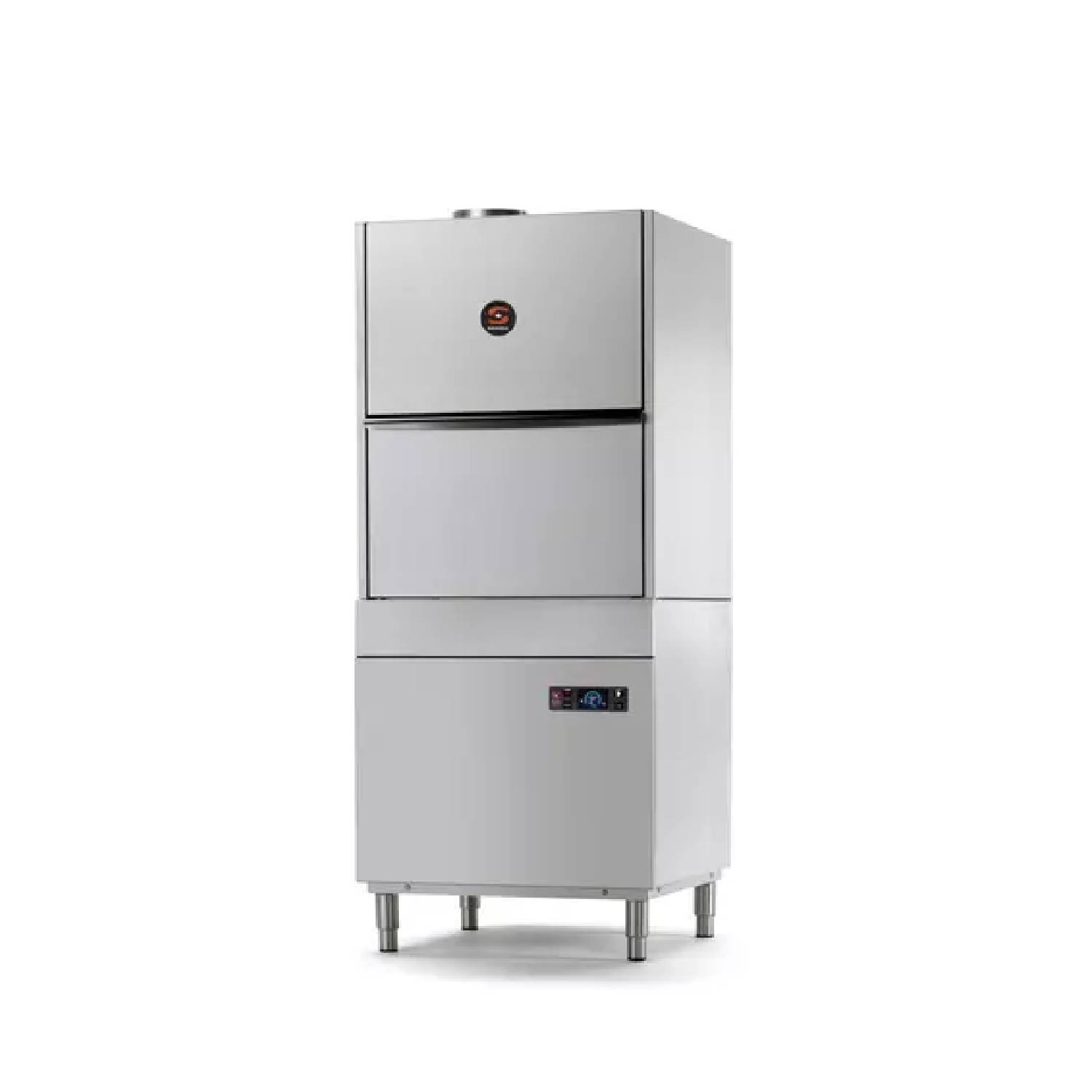

The Sammic UX-600 is a high-capacity utensil washer / pot washer designed for busy commercial kitchens that handle large pots, trays and GN containers every day. With a 600 x 630 mm rack, 650 mm loading height and constant-temperature rinsing system, it delivers reliable hygienic results on oversized, heavily soiled items in restaurants, hotels, bakeries, patisseries, ice-cream shops and butcheries.
The double-skinned stainless steel cabinet keeps noise and heat loss to a minimum, while the counterbalanced split door and fully removable stainless steel basket make loading and unloading easier and safer for staff. An advanced LCD control panel provides clear information, with quick access to cycle selection and real-time wash and rinse temperatures.
Why Buy the Sammic UX-600?
- Designed specifically for big pots, pans, trays and utensils that will not fit in standard dishwashers
- Constant-temperature rinsing system with thermal lock for consistently hygienic results
- High-pressure wash performance with powerful pump and stainless steel spray arms
- Double-skinned construction for quieter operation and reduced energy loss
- Rounded wash tank and self-clean cycle to minimise dirt traps and simplify end-of-shift cleaning
- Advanced LCD control panel with humidity protection and clear display of wash and rinse temperatures
- Efficient water, energy and chemical usage compared with older utensil washer designs
Key Features
- Rack size: 600 mm x 630 mm
- Useful loading height: 650 mm
- Counterbalanced door divided into two sections for easy handling and extended loading height
- Double-skinned stainless steel cabinet and door
- Rounded wash tank with no sharp corners to avoid dirt accumulation
- Stamped stainless steel wash and rinse dispersers, fully removable for cleaning
- Self-cleaning cycle at the end of service
- Safety micro-switch on the door and electronic controls to ensure correct wash temperature and time
- Advanced UX LCD control panel with cycle progress and temperature display
- Supplied with 1 stainless steel basket and insert for 4 trays
Technical Specifications — UX-600
- Basket dimensions: 600 x 630 mm
- Useful height: 650 mm
- Number of wash cycles: 5
- Cycle durations: 120 / 180 / 240 / 360 / 480 seconds
- Production: 30 / 20 / 15 / 10 / 7 racks per hour (depending on cycle)
- Pump power: 3 Hp / 2200 W
- Tank heating: 6000 W
- Boiler heating: 9000 W
- Total connected load: 11,200 W
- External dimensions (W x D x H): 742 x 852 x 1843 mm (door closed)
- Depth with door open: 1232 mm
- Height with door open: 2035 mm
- Net weight: 168 kg
- Approximate water consumption: 3.5 litres per cycle (with recommended 55°C inlet)
- Electrical supply: All UX-600 models require a 400 V, 3-phase hardwired electrical connection (11.2 kW load).
Available Models (UX-600 Range)
The UX-600 utensil washer is available in four factory configurations. All models share the same rack size, loading height, wash system and construction; the differences relate to built-in dosing, water safety and steam management options.
- UX-600C – Includes detergent dispenser and WRAS-approved break tank.
- UX-600BC – As UX-600C, with the addition of an integrated drain pump for sites where waste is higher than the machine outlet.
- UX-600CV – Includes detergent dispenser, WRAS-approved break tank and HRS steam condenser for improved working conditions.
- UX-600BCV – Full specification model with detergent dispenser, WRAS-approved break tank, drain pump and steam condenser.
Please select your preferred model from the drop-down options above.
Installation & Site Requirements
- Water softening: A suitable water softener is strongly recommended in hard water areas to protect the wash system and heating elements and to maintain rinse quality.
- Drainage: Where the site waste is higher than the machine outlet, a version with integrated drain pump (UX-600BC / UX-600BCV) or a suitable external pump will be required.
- Services: The UX-600 requires appropriate electrical, water and waste connections in line with the manufacturer’s technical specification.
- Installation & warranty: All connections must be carried out in accordance with current regulations by a qualified engineer. Incorrect installation may invalidate the manufacturer’s warranty.

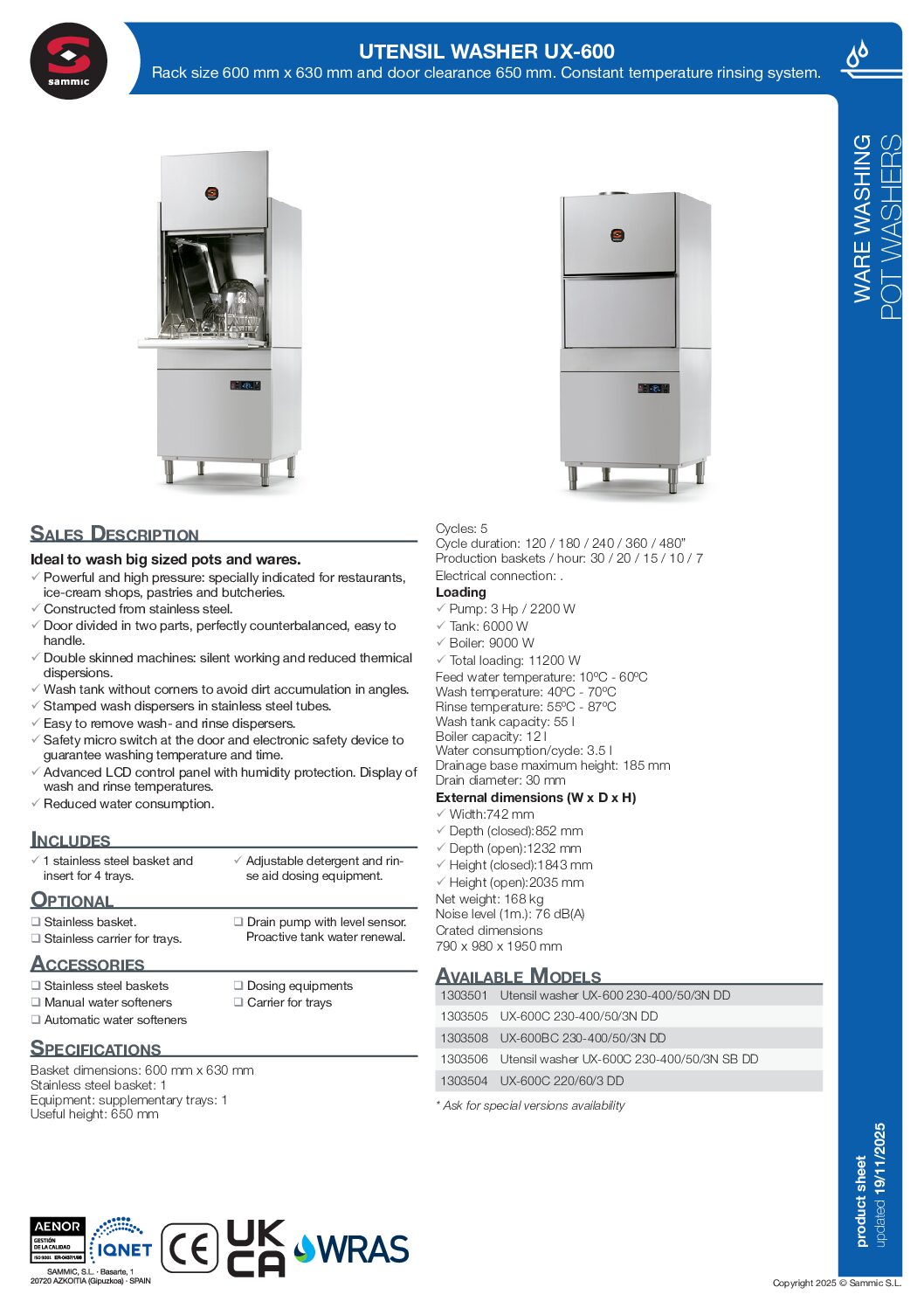

For full technical and installation requirements, please refer to the manufacturer’s specification sheet (attached).
Delivery & Warranty
Fast Free UK Mainland Delivery included. For Northern Ireland, Scottish Highlands and Islands, a delivery charge will apply based on order weight – please contact us for a tailored quote.
The Sammic UX-600 is supplied with the manufacturer’s standard commercial warranty.
Need Assistance?
Unsure whether the UX-600 and its variants will suit your pots, trays or site services? Call us on 01379 641223 – we’ll confirm capacity, model choice and installation requirements before you buy.
Installation Notice
Electrical appliances MUST be installed by a qualified electrician. Incorrect compliance to current installation legislation will lead to invalidation of warranty and may pose safety risks. Please refer to the specification sheet for full electrical requirements and technical information.
