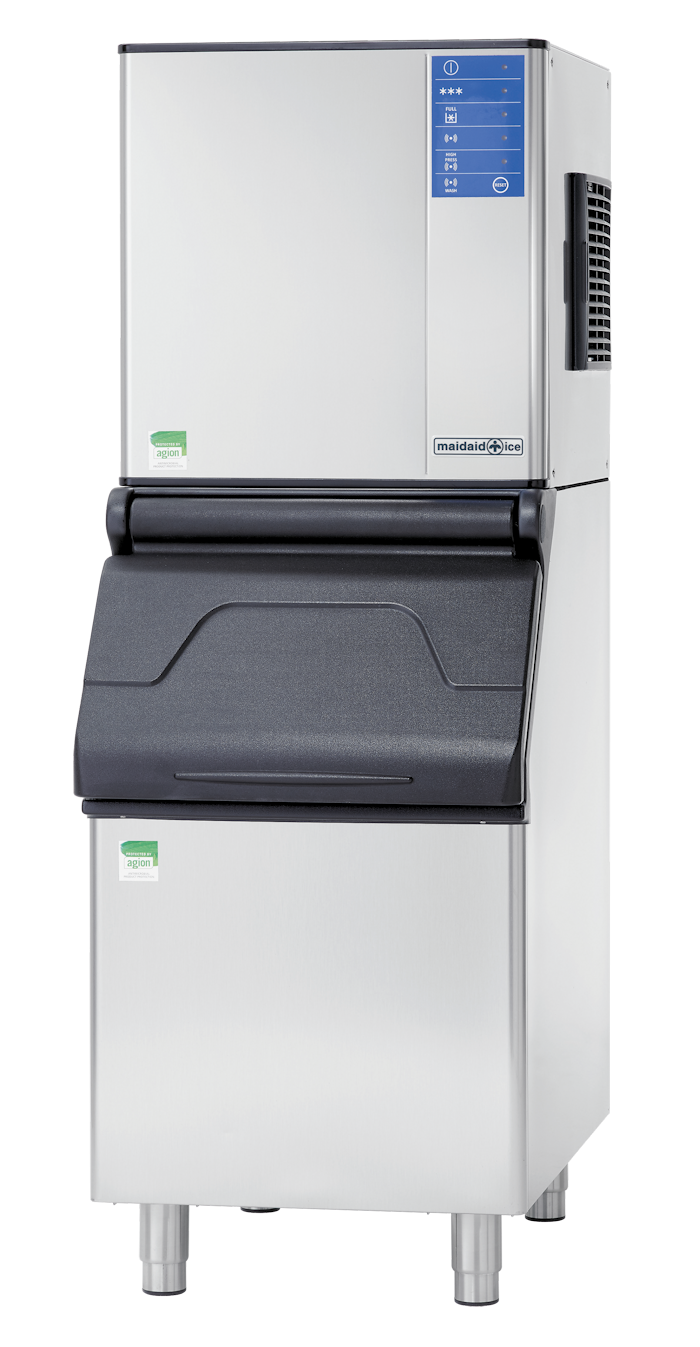

Maidaid SLIM195E Slim Bin Cube Ice Machine
Maidaid SLIM195E Slim Bin Cube Ice Machine is part of the range of three modular units, all 560mm in width designed to fit in small spaces. All slim bin modular units will require to be mounted on a storage bin (sold separately).
Available ice cube sizes: Standard cube 10 gram 22 x 22 x 24mm, Half cube 6 gram and large cube 17 gram options.
All models in this range are capable of operating in ambient temperatures of between +10C and +40C.
PRODUCT FEATURES:
- 560mm wide unit for small spaces
- Soft touch control panel
- Hydrocarbon with zero environmental impact
- Vertical evaporation design
- Excellent service accessibility
- Supply water temperature between 5°C and 35°C
SPECIFICATION: Please refer to spec sheet for full technical requirements.
- W 560 x D 620 x H 660mm
- Production (24 hours) 210kg
- Drain height 43mm
- Water consumption (air cooled) 9.2 litres per hour
- Gross weight 78kg
- Power 2.84kW
- 230V, Single phase, 16 amp
- Require water supply pressure between 1 and 5 bar
- Environmentally friendly gas
AVAILABLE IN THIS RANGE:
SLIM195E: 210kg/24hrs (16A)
To produce ice of good quality all ice machines must be supplied with suitably softened and filtered water. Any filters and softeners must be of sufficient capacity and correctly maintained.
Electrical appliances MUST be installed by a qualified electrician. Incorrect compliance to current installation legislation will lead to invalidation of warranty. Please refer to spec sheet for full electrical requirements/technical specifications
