Maidaid C525WS Undercounter Glasswasher with Drain Pump, Water Softener & Break Tank – 500mm Basket
Maidaid C525WS Undercounter Glasswasher with Drain Pump, Water Softener & Break Tank – 500mm Basket is part of the Maidaid C Range of Undercounter Dishwashers and Glasswashers – a fully electronic machine range offering outstanding value for money.
PRODUCT FEATURES:
- Breaktank and fitted drain pump as standard
- 500 x 500mm rack
- 2 year warranty
- Increased usable height
- Four button bright LED display with soft touch controls, twin traffic lights giving instant status updates & operational self-diagnostics
- Alarms menu with hi-level information retrieval
- Improved wash action from quick release parallel wash & rinse arm design
- Improved range of water hardness settings
- Automatic continuous internal water softener and drain pump as standard
- Three standard cycle time options with further options available
- Cycle times can be tailored to site requirements
- Reduced water consumption
- Automatic self-cleaning at end of service
- Selectable energy saving mode
- Selectable thermostop ensures optimum rinse temperatures
- Patented dual flow wash pump – reducing power consumption whilst retaining wash efficiency
- Moulded wash tank for easy cleaning
- Moulded rack guide giving partial double skin
- Surface scrap tray filters supplied as standard
- Accurate detergent and rinse aid peristaltic dosing pumps as standard
- Supplied with one pegged rack, one open cup/glass rack & cutlery insert

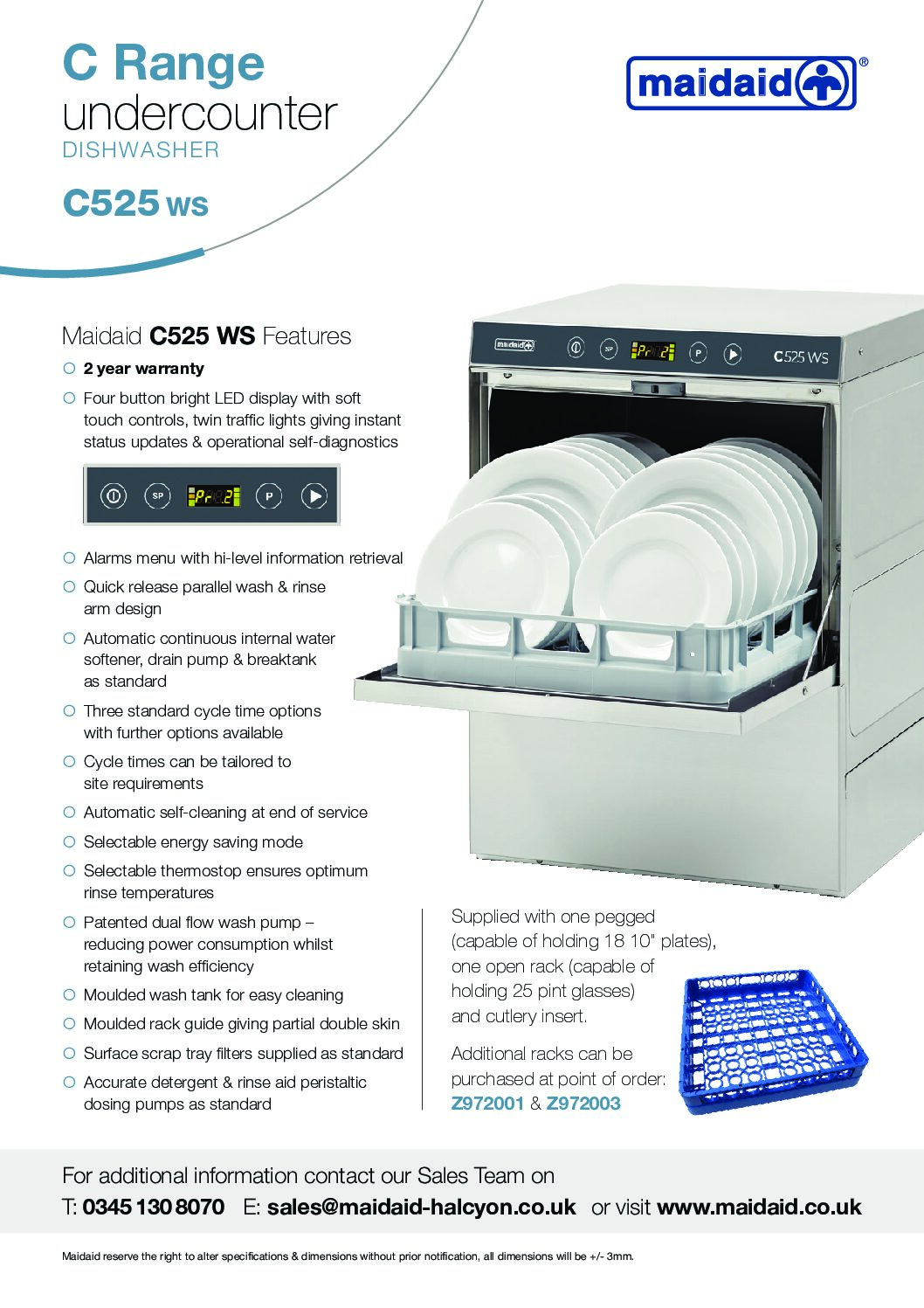

SPECIFICATIONS: Please refer to spec sheet for full technical and Installation requirements.
-
- Maximum useable height 340mm
- Height excludes adjustable feet which will add 10 – 20mm
- Power Supply options:
- Installed power AMP/ kW
- Power 2.6/4.5/6.5kW
- 13/20/30 Amps
EXTERNAL DIMENSIONS:
Width: 580mm
Depth: 610mm
Height: 810 + feet mm
Electrical appliances MUST be installed by a qualified electrician. Incorrect compliance to current installation legislation will lead to invalidation of warranty. Please refer to spec sheet for full electrical requirements/technical specifications
*Water treatment: To achieve good warewashing results water treatment is essential. It will help prevent calcium scaling of internal components and reduce detergent consumption. If water hardness exceeds 7° Clark (100 ppm), a water softener is recommended on all dish and glass washers, unless already built into the machine.
