DC SXG40 D Glasswasher 450mm Basket with Drain Pump
DC SXG40 D Glasswasher 450mm Basket with Drain Pump is a high-performance solution built for busy hospitality environments. With rapid cycle times, energy-efficient construction, and intuitive controls, it delivers consistently spotless glassware, service after service.
Perfect for bars, cafés, pubs, and event venues, the SXG40 fits neatly under counters and handles high volumes with ease. Its durable stainless steel build, chemical auto-dosing, and easy-clean components make it a dependable, low-maintenance choice for fast-paced operations.
The SXG40 includes two 450 x 450mm baskets and is offered in various configurations tailored to your site requirements—such as options with integrated drain pumps or internal water softeners.
Its double-skinned stainless steel body reduces noise and heat loss, enhancing efficiency and making it ideal for front-of-house use. A 2-minute cycle, programmable Thermolock, and rinse temperature control ensure consistent hygiene with every wash.
Why Choose the SXG40 D?
-
Fast 2-minute wash cycle for high-throughput glassware cleaning
-
Includes built-in drain pump for flexible installation
-
Energy-efficient design with low water and detergent usage
-
450 x 450mm baskets – 2 supplied as standard
-
Double-skinned stainless steel cabinet for reduced noise and heat loss
-
Auto-dosing for detergent and rinse aid
-
LCD display and soft-touch controls
-
Thermolock function ensures correct rinse temperature
-
Easy-clean filters and removable wash arms
-
Ideal for bars, pubs, cafés, and hospitality venues
- Derating Option: 20A to 13A for flexible installation (upon request).
- Warranty Options: 2 year parts only or 2 year parts and labour (select at checkout)
Technical Specifications — SXG40
- Cycle time: 60 / 90 / 120 / 180 sec (user-defined)
- Baskets (x2): 450 × 450 mm
- External dimensions (H × W × D): 690 × 475 × 540 mm
- Depth with door open: 885 mm
- Usable wash height: 290 mm
- Drain height: 120 mm
- Drain diameter: 25 mm
- Wash tank capacity: 18 litres
- Boiler capacity: 2.8 litres
- Water usage: 2.4 litres per cycle
- Wash element: 1.6 kW
- Boiler element: 2.8 kW
- Total electrical load: 4.7 kW
Installation & Site Requirements
- Water softener: Required if supply hardness exceeds 100 ppm. Using an internal or external softener improves results, reduces running costs, and extends machine life.
- Drain pump: Needed when the site waste is higher than the machine’s drain outlet.
- Installation & warranty: Electrical appliances must be installed by a qualified electrician. Faulty installation/commissioning, misuse, or user-related issues are not covered. A warranty call-out will not be arranged without the installing engineer’s name.

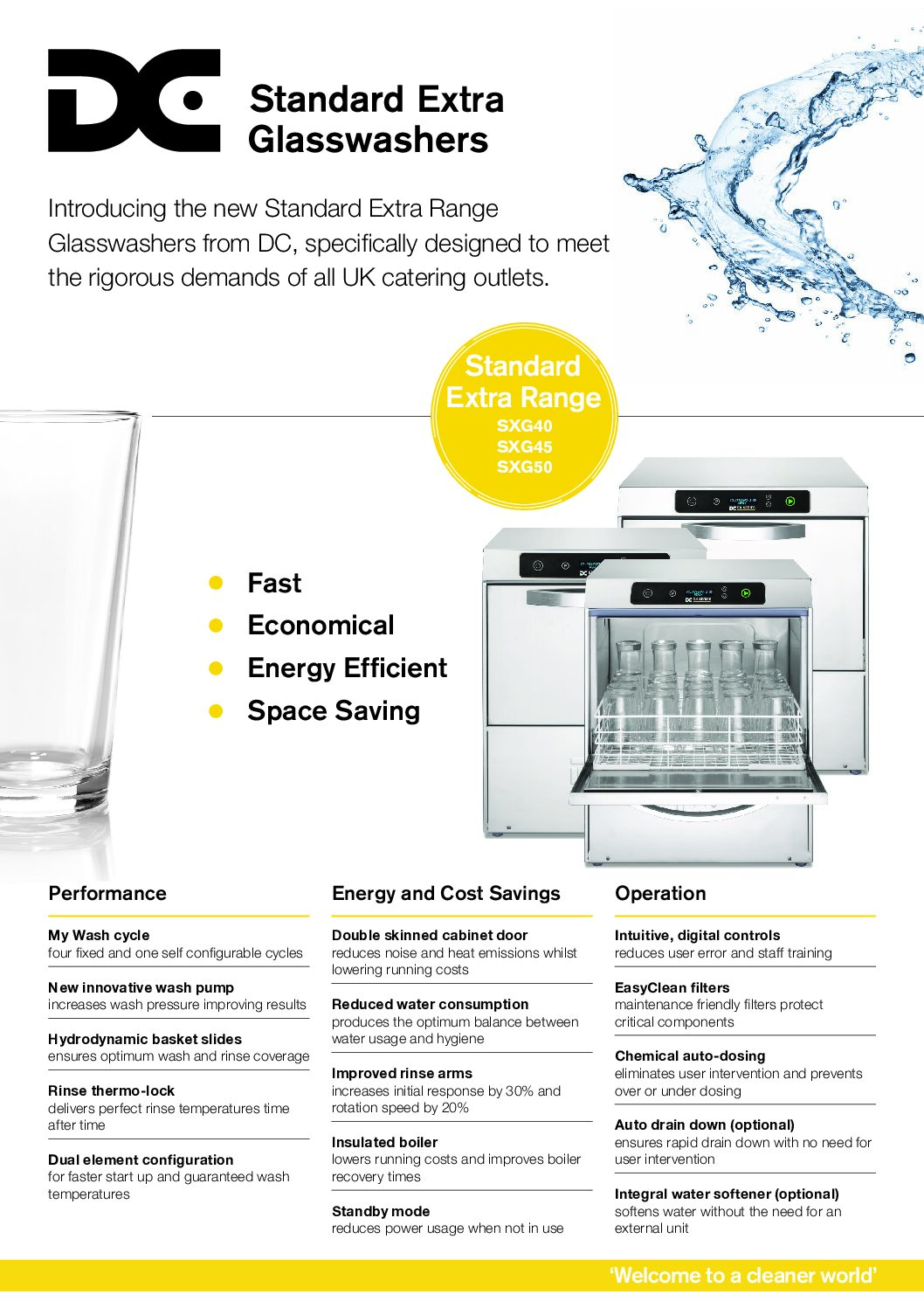

For full technical and installation requirements, please refer to the manufacturer’s specification sheet (attached).
