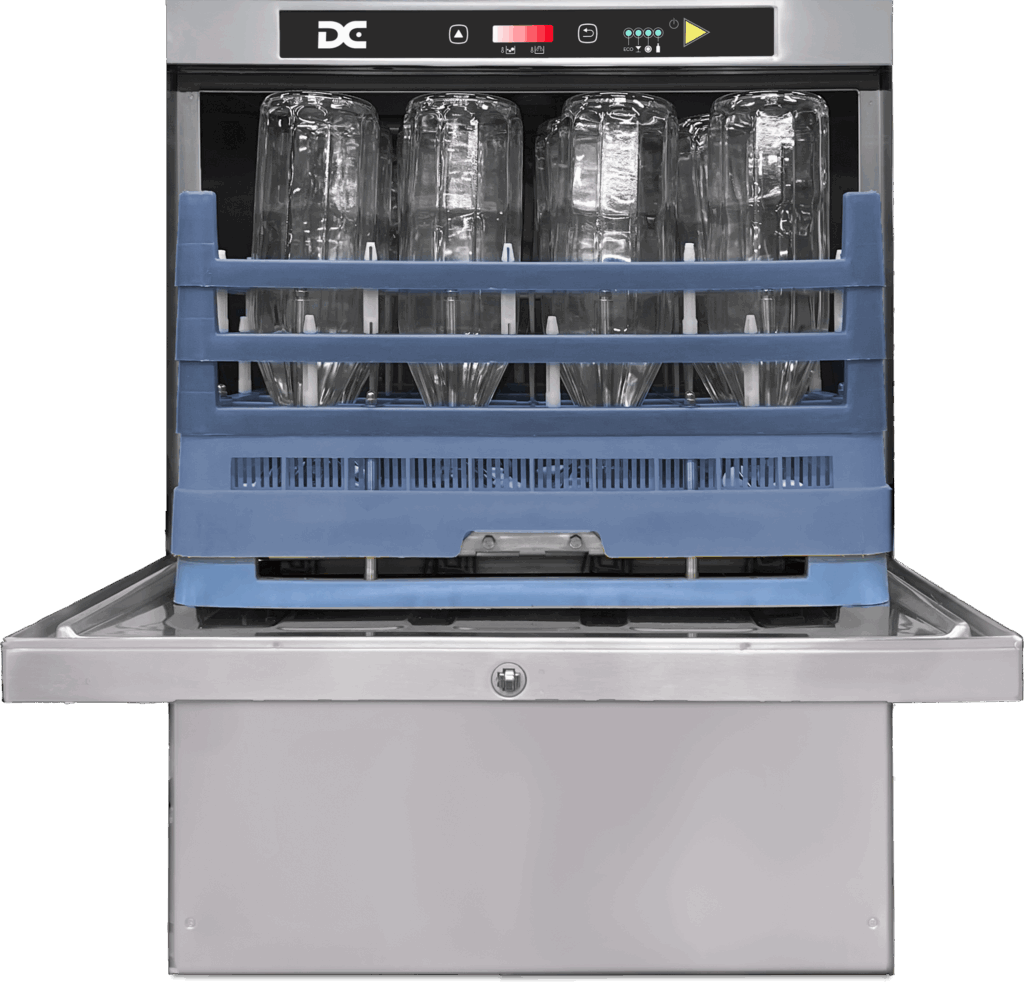

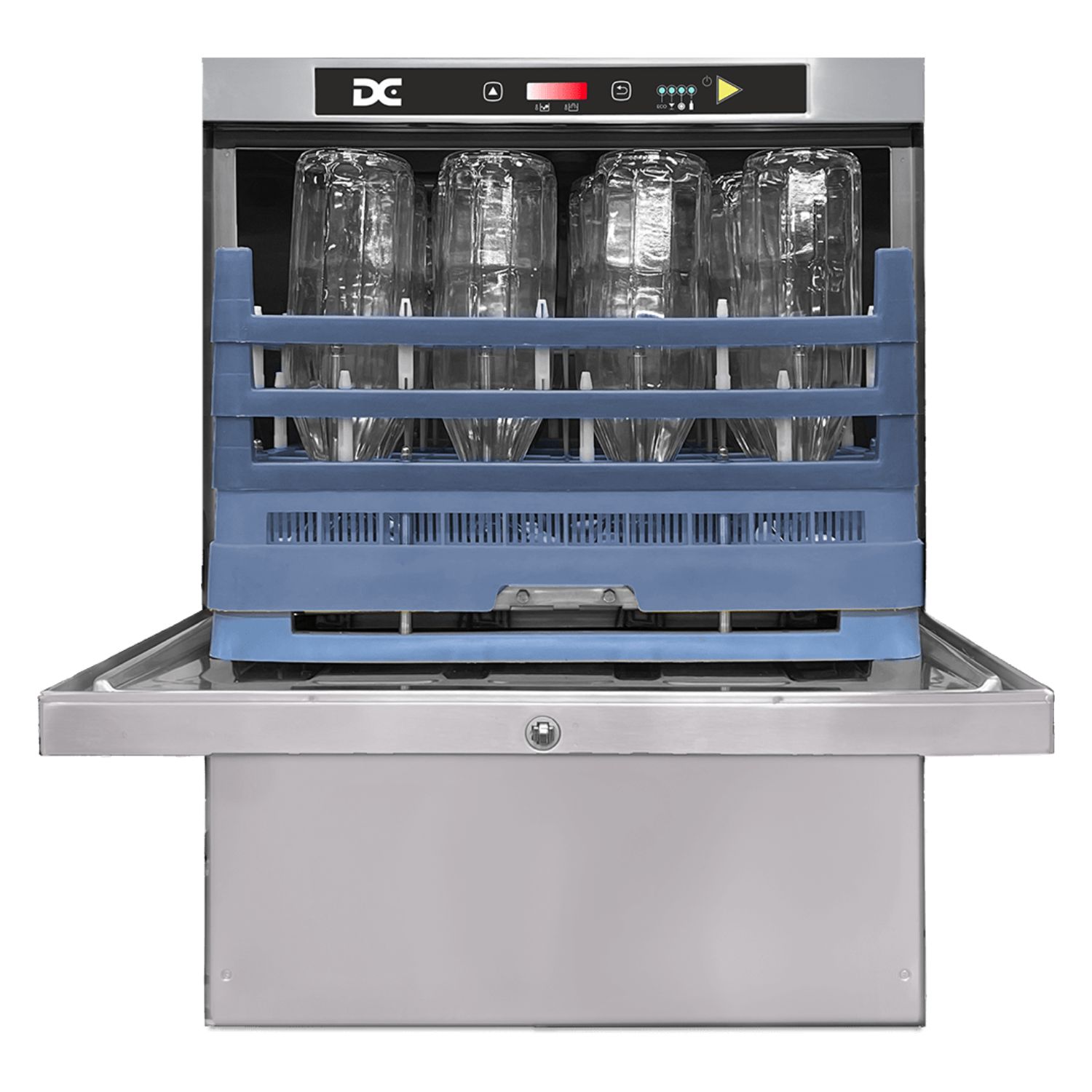

The DC BW50A D is a true multi-purpose washer designed to work as a bottle washer, glasswasher or dishwasher simply by swapping the rack. As part of our wider commercial warewasher range, it offers a flexible solution for hospitality sites that need adaptable washing performance within a single footprint.
That versatility makes it an excellent choice for busy bars, breweries, food production spaces and refill environments where requirements can change day to day.
Producing up to 40 racks per hour, the BW50A D uses a 500 x 500mm rack format and is supplied with dedicated baskets for bottle, jug and plate washing. The machine automatically recognises when the bottle rack is in place and adjusts the wash hydraulics accordingly, helping deliver strong wash results with minimal input from the operator.
With a built-in break tank and drain pump, four selectable wash cycles and integrated dosing, it’s engineered for reliable daily use in commercial settings where output, compliance and consistency matter.
For sites requiring a dedicated glasswasher or dishwasher without bottle-washing functionality, alternative 500mm rack machines are available within the range to suit specific operational needs.
Why Choose the DC BW50A D?
- Converts between bottle washer, glasswasher and dishwasher by changing the rack
- Up to 40 racks per hour output
- Automatic bottle rack recognition
- Built-in break tank
- Integrated drain pump
- Four programmable wash cycles
- Soft-start wash cycle for delicate glassware
- Self-cleaning cycle on switch-off
Key Features
- 500 x 500mm rack system
- Supplied with three baskets: bottle, jug and plate
- Usable wash height: 340mm
- Wash tank capacity: 12 litres
- Boiler capacity: 5.5 litres
- Water usage: 2.5 litres per cycle
- Double water blade wash design
- Integrated detergent and rinse aid dosing
- Multiple filtration system
- Magnetic microswitch safety system
- Self-cleaning cycle on switch-off
- Stainless steel construction
Technical Specifications
- Dimensions (W x D x H): 600 x 605 x 820 mm
- Rack size: 500 x 500 mm
- Maximum output: up to 40 racks per hour
- Usable wash height: 340 mm
- Wash tank element: 2 kW
- Boiler element: 6 kW
- Total load: 6.6 kW
- Electrical supply options:
- 3N 13A (Three phase + neutral)
- 1PH 32A (Single phase)
- Water connection: ¾ BSP
- Required water pressure: 2–4 bar
- Required flow rate: 10 litres/minute
- Drain diameter: 65 mm
- Break tank: Yes
- Drain pump: Yes
Delivery & Warranty
Fast Free UK Mainland Delivery included. For Northern Ireland, Scottish Highlands and Islands, a delivery charge may apply — please contact us for a quote.
Available with 2 Year Parts Only or 2 Year Parts & Labour warranty options.
Need Assistance?
Not sure which rack setup or electrical configuration suits your site? Call us on 01379 641223 — we’ll confirm requirements before you order.
Installation Notice
This machine must be hardwired by a qualified electrician. It requires either a three-phase 13A per phase supply (3N) or a 32A single-phase feed (1PH). Incorrect installation may invalidate warranty and pose safety risks.
The unit includes a built-in break tank and must be installed in accordance with current water regulations.
Frequently Asked Questions
Can this machine operate as a bottle washer, glasswasher and dishwasher?
Yes. The BW50A D uses a standard 500 x 500mm rack format and can be configured for bottle, glass or dish washing by changing the rack. It automatically adjusts when the bottle rack is in place, so no manual reconfiguration is required.
What size items will it take?
The usable internal wash height is 340mm. This allows it to handle most standard bottles, jugs, glasses and plates. If you have specific items you’re unsure about, contact us and we’ll confirm suitability.
What electrical supply does it need?
The machine is available in either 3N 13A (three-phase + neutral) or 1PH 32A (single-phase) configurations. It is not a plug-in unit and must be hardwired by a qualified electrician.
Does it include a break tank?
Yes. A built-in break tank is fitted as standard to support compliance with current water regulations.
Is a drain pump included?
Yes. The BW50A D is supplied with an integrated drain pump.
Does it have an internal water softener?
No. This model cannot be supplied with an integral softener. In hard water areas, an external water softener is recommended to reduce limescale build-up and protect internal components. We supply suitable external softeners and can advise on the correct size for your site.
How much water does it use?
The machine uses approximately 2.5 litres of water per cycle, helping to keep operating costs controlled.
How many racks per hour can it process?
The BW50A D can produce up to 40 racks per hour, depending on the selected cycle and site conditions.
