The Classeq C500WS is a large-capacity undercounter glasswasher with an integrated water softener — ideal for sites in hard water areas that need reliable glass care and maximum performance.
Fitted with a 500 x 500mm basket and capable of washing up to 1000 glasses per hour, it’s built for demanding venues like pubs, clubs, restaurants, and events. As standard, it includes a WRAS-approved break tank, drain pump, chemical dosing, and Classeq’s Bluetooth® connectivity for setup and servicing.
This model is supplied in a glasswasher configuration. Also available as a dishwasher — see our Classeq C500WS Dishwasher listing.
Key Features

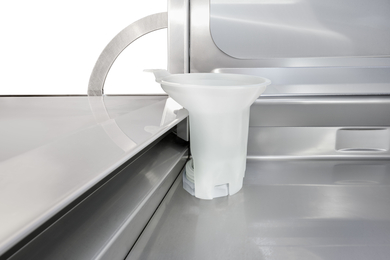

- Integral water softener – protects against limescale in hard water areas

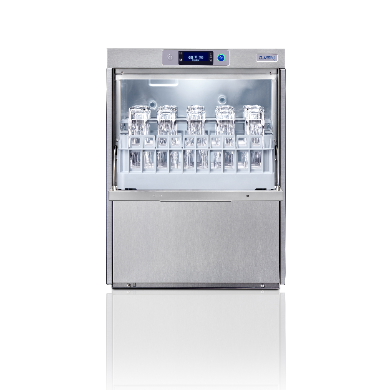

- Glasswasher setup – up to 1000 glasses per hour
- 500 x 500mm basket – accommodates up to 30 pint glasses per cycle
- WRAS-approved break tank (Type AB air gap)
- Drain pump, rinse booster, detergent and rinse aid pumps
- Double filtration and moulded basket rails for simple cleaning
- Energy-saving standby and auto-service reminders
- Bluetooth® app for setup, diagnostics, and usage stats
Technical Specifications
- Dimensions: 600 x 600 x 820mm (W x D x H)
- Glass capacity: 30 pint glasses per cycle
- Theoretical racks per hour (glass): 40
- Wash programmes: 1.5 and 3 minutes
- Wash temperature: 55°C | Rinse temperature: 65°C
- Water consumption: 2.25L per cycle
- Water pressure: 2 bar | Flow rate: 4 L/min
- Drain size: 40mm | Max drain height: 600mm
Power Options
- 13A Single Phase (Plug & Play – 2.5kW)
- 30A Single Phase (Hardwired – 6.5kW)
- 13A Three Phase (Hardwired – 6.5kW)
Delivery & Warranty
Dispatched next working day (weekday) if ordered before 1pm.
UK mainland delivery included. For delivery outside the UK mainland, please call us for a quote.
Backed by a 2-year parts and labour warranty from Classeq.
Need Assistance?
Not sure which model or power supply you need? Call us on 01379 641223 — we’re here to help.
Installation Notice
This machine must be installed by a qualified commercial electrician and plumber.
The C500WS can be configured as either a glasswasher or dishwasher — this listing is for the glasswasher version.
Please confirm your setup and installation requirements when ordering.
