If your kitchen needs reliable, high-volume output without relying on one “super user”, this 20 x 2/1 GN combi oven is built to standardise results across every shift. Injection steam, smart sensors and automated cooking support help you push volume confidently, while ClimateControl keeps heat and humidity tightly managed for consistent quality.
Designed for demanding production, it combines fast, efficient steam generation with a guided touchscreen experience, built-in connectivity and an automatic cleaning system that helps keep turnaround quick between services.
Why Buy
- High-capacity throughput: 20 x 2/1 GN capacity supports batch cooking, banqueting and large-scale prep.
- Consistent results with less training: SmartChef cooking automation helps operators of all skill levels achieve repeatable outcomes.
- Precision humidity and airflow control: ClimateControl manages air, heat and humidity for predictable finish and texture.
- Cleaner, faster close-down: CareCycle automatic cleaning offers guided cycles from light to intensive, including Eco options.
- Connected kitchen ready: Open Kitchen compatibility supports cloud connectivity for monitoring, updates and operational insights.
Key Features
- 20 x 2/1 GN capacity (also supports 1/1 GN)
- Injection steam for rapid, efficient steaming performance
- SmartChef intelligent cooking automation and recipe support
- MenuPlanner with multiple integrated timers for managing mixed loads
- ClimateControl for controlled air, heat and humidity
- CombiSense automatic humidity adjustment for high-temperature cooking
- CombiSpeed power steam adjustable in 10 levels for reduced cooking times
- CareCycle fully automatic, tablet-based cleaning system (guided cycle selection)
- Open Kitchen cloud connectivity (Wi-Fi / LAN)
- External multipoint core temperature probe
Technical Specifications
- Model: LQC220
- Capacity: 20 x 2/1 GN (or 40 x 1/1 GN with 65mm runners)
- Temperature range: 30°C to 300°C
- Controls: 7″ touchscreen controller
- Dimensions (H x W x D): 1730 x 1077 x 1043mm
- Net weight: 327kg
- Power: 62.2kW
- Electrical supply: 400V, 3 phase (3PN AC)
- Water connection: 3/4″
- Water pressure: 1–6 bar
- Drain: Ø50mm
- Connectivity: Wi-Fi (IEEE 802.11 b/g/n) and LAN (RJ45)
- IP rating: IPX5
Delivery & Warranty
Fast Free UK Mainland Delivery included. Free UK mainland standard delivery included. For Northern Ireland, Scottish Highlands and Islands, a delivery charge applies based on order weight. Please contact us for a quote.
Covered as per the manufacturer’s standard warranty.
Need Assistance?
Want to confirm site suitability (power supply, water feed and drainage) or check access for positioning? Call our friendly team on 01379 641223 — we’ll help you check the install requirements before you order.
Installation Notice

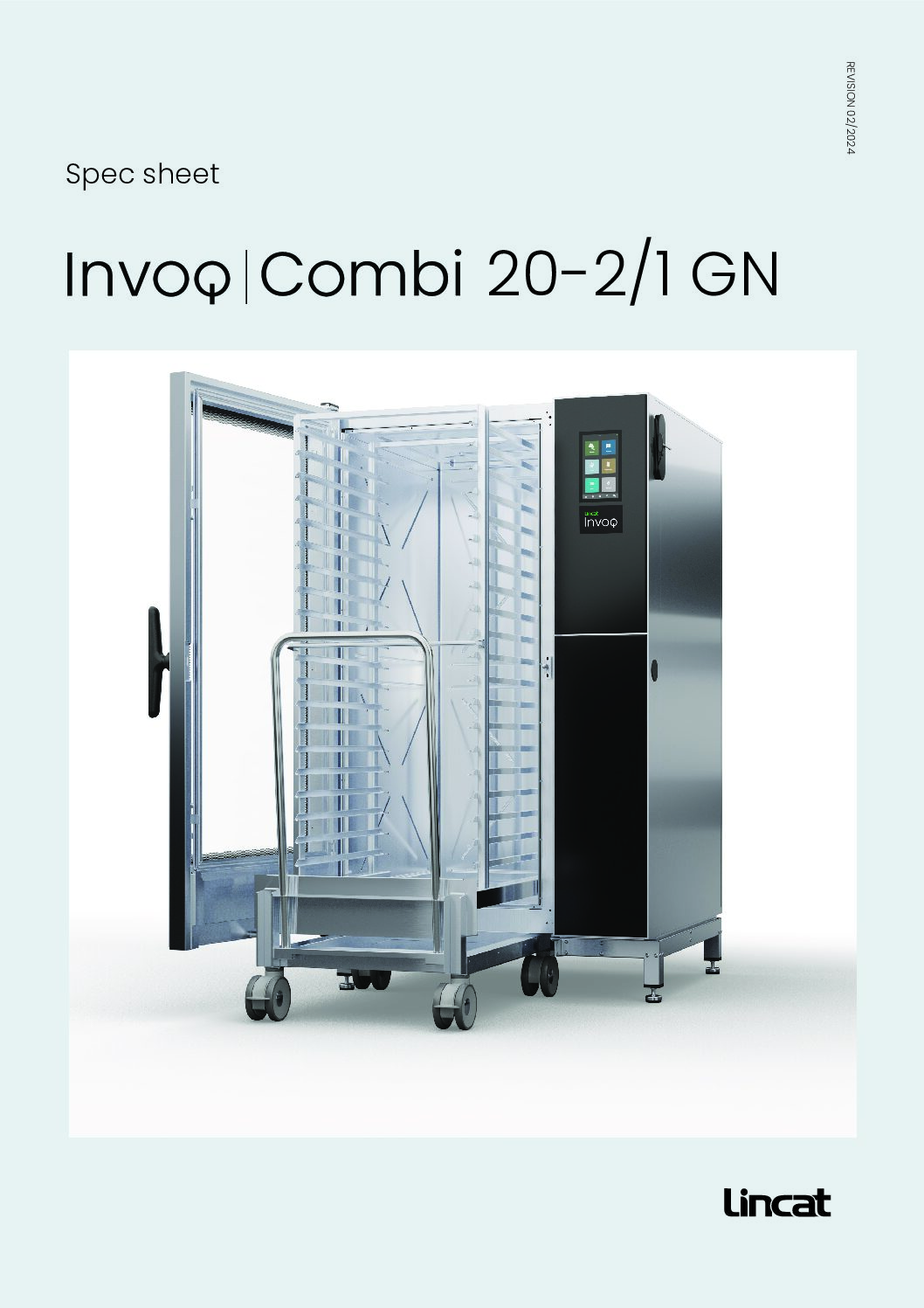

Electrical appliances MUST be installed by a qualified electrician. Incorrect compliance to current installation legislation will lead to invalidation of warranty and may pose safety risks. Please refer to spec sheet for full electrical requirements/technical specifications. Full technical specifications are available in the downloadable product datasheet.
